DS-AIBOX-RM

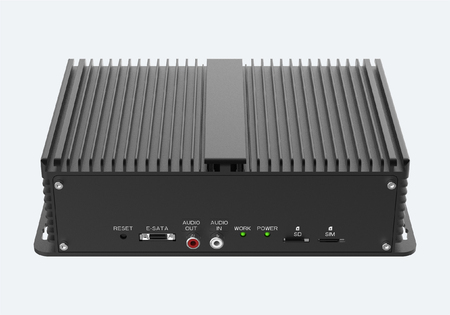

NAME: Edge AI Box
No.: DS-AIBOX-RM
BRAND: DOWSE
OEM: YES
Summary
Parameter
Download


16T Computing Power / 16 Ports / Support 5G /

Industrial Dustproof / Effective Heat Dissipation

² up to 16 channels 1080P video streams

² 16Tops Deep Learning power

² windows application for parameter configuration

² secondary development interface for system access

² energy efficient and compact design


Model

DS-AIBOX-RM

CPU

4 ARM CortexA55

RAM

DDR3 2GB

Video Port

HDMI port, max. 1920*1200

Network Port

RJ45 1000BASE-T * 2

Storage

8GB /16GB EMMC selectable

Interface

USB3.0 * 2, e-SATA, HDMI 2.0 * 2, DC 12V/5A, Alarm I/O, Audio I/O, RS485, RS232, RST reset

Video In

Up to 16 channels of RTSP, support H.264/H.265, max. 1920*1200

Remote Configuration

Time setting, system upgrade, restart operation, etc. of the device can be performed via the client.

Log View

Device log information can be viewed via the client.

Status View

Device availability, running time, system time, number of captured pictures, can be view via the client.

Power

DC12V@5A

Power Consumption

≤25W

Operating Temp.

-30- 70

Storage Temp.

-40- 80

Operating System

Linux

Dimension

232.42 * 147.3 * 53.2 mm (L*W*H)



Application Example


Applicable

Combined with scene adaptation, software-defined hardware (including face detection snapshots, abnormal behavior analysis, safety production management, VIP/strangers precise recognition, vehicle analysis, attribute analysis, passenger flow statistics).

Snapshot Display

Captured face image can be displayed via the client.

Snapshot Mode

Capture mode can be set via the client, including real-time mode, timing mode, entry mode, exit mode.

Snapshot Parameter Setting

Snapshot rules can be set via the client, including face threshold, protocol upload, etc.

Snapshot Data Output

Data output can be obtained via client SDK, including face jpg image, channel no., timestamp, face position, background image, face confidence, etc.
